How Cleanroom Airflow Systems Work | Understanding Cleanroom Airflow Design
Cleanrooms are specialized environments designed to control airborne particles, temperature, humidity, and pressure. The airflow system is at the heart of every cleanroom—it determines how air moves, how contaminants are removed, and how cleanliness standards such as ISO 14644-1 are maintained.
This article explains how cleanroom airflow systems work, the difference between laminar and turbulent airflow, and how a properly designed HVAC and filtration system ensures ISO compliance, energy efficiency, and safety.
What Is a Cleanroom Airflow System?

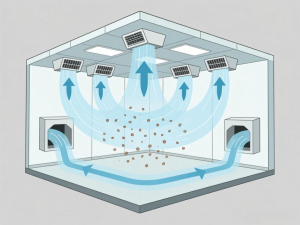

A cleanroom airflow system continuously circulates filtered air through the workspace to remove contaminants and maintain pressure control. Clean air passes through HEPA or ULPA filters and flows in a defined pattern, pushing airborne particles toward return vents where they are removed from the environment.
The goal is simple: deliver high-quality filtered air while minimizing particle buildup and preventing cross-contamination.
Types of Cleanroom Airflow
1. Laminar (Unidirectional) Airflow
Laminar airflow delivers filtered air in a single, smooth direction—either vertically from ceiling to floor or horizontally across the workspace. This consistent flow reduces turbulence and carries contaminants directly away from critical areas.
- Used in ISO Class 1–5 cleanrooms
- Applications: semiconductor manufacturing, pharmaceutical filling, precision optics
- Typical velocity: 0.3–0.45 m/s
2. Turbulent (Non-Unidirectional) Airflow
Turbulent airflow systems mix filtered air throughout the cleanroom to dilute contaminants. Instead of moving in one direction, air is supplied through ceiling diffusers and extracted through low-level returns, creating a balanced environment.
- Used in ISO Class 6–8 cleanrooms
- Common in medical device assembly and general manufacturing
- More cost-effective and energy-efficient than laminar flow
Key Components of a Cleanroom Airflow System
- HEPA / ULPA Filters: Capture up to 99.999% of particles ≥0.3 microns
- Fan Filter Units (FFUs): Provide localized air circulation and filtration
- Air Diffusers & Ceiling Panels: Evenly distribute filtered air
- Return Air Grilles: Channel used air back to filtration system
- Pressure Control System: Maintains positive or negative pressure as needed
Air Pressure Control
Cleanrooms rely on pressure differentials to prevent contamination. A positive pressure environment ensures that air leaks out rather than in—ideal for semiconductor or pharmaceutical applications. In contrast, negative pressure is used in biosafety or infectious disease facilities to contain hazardous particles.
Energy Efficiency Considerations
Cleanroom HVAC systems can consume up to 70% of total facility energy. To reduce costs, modern systems use Variable Air Volume (VAV) controls, energy-efficient FFUs, and real-time monitoring to optimize airflow without sacrificing cleanliness.
Maintaining Airflow Performance
To ensure compliance with ISO 14644 standards, regular testing and maintenance are essential:
- HEPA/ULPA filter integrity testing
- Air velocity and uniformity checks
- Pressure differential verification
- Routine FFU cleaning and calibration
Why Airflow Design Matters
Proper airflow design ensures consistent cleanliness, protects sensitive products, and extends equipment life. A well-balanced cleanroom airflow system improves yield, reduces downtime, and supports compliance across multiple industries—from semiconductors to healthcare.
Conclusion
Understanding how cleanroom airflow systems work is key to achieving contamination-free production. Whether you are building a new ISO cleanroom or upgrading an existing facility, investing in a professional airflow design will enhance performance, compliance, and long-term reliability.
